大脑动脉血管供血分区CT解剖

28 1月

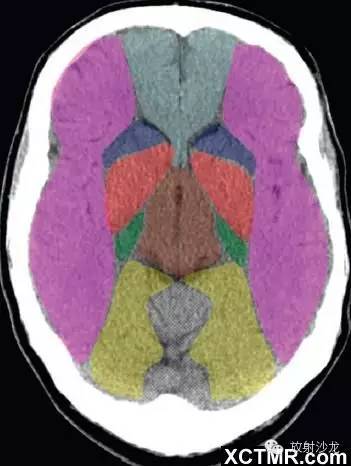

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery)

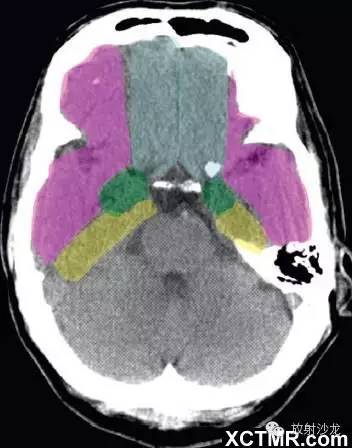

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery),绿色部分为脉络膜前动脉供血区(Anterior choroidal artery),

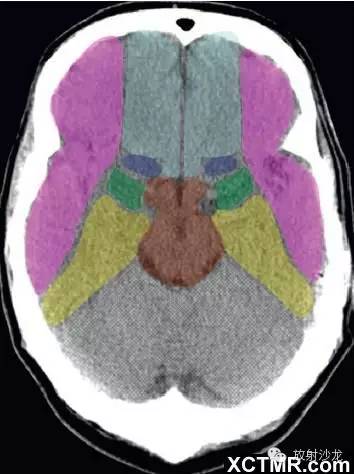

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery),绿色部分为脉络膜前动脉供血区(Anterior choroidal artery)

褐色部分为大脑前动脉深穿支供血区(Penetrating branches of the anterior cerebral artery)

枣红色部分为大脑后动脉深穿支及后交通动脉供血区(Penetrating branches of the posterior cerebral artery and posterior communicating artery),

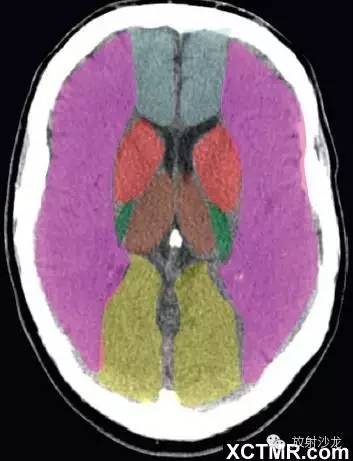

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery),绿色部分为脉络膜前动脉供血区(Anterior choroidal artery)

褐色部分为大脑前动脉深穿支供血区(Penetrating branches of the anterior cerebral artery)

枣红色部分为大脑后动脉深穿支及后交通动脉供血区(Penetrating branches of the posterior cerebral artery and posterior communicating artery)

亮红色部分为大脑中动脉深穿支供血(Penetrating branches of the middle cerebral artery)

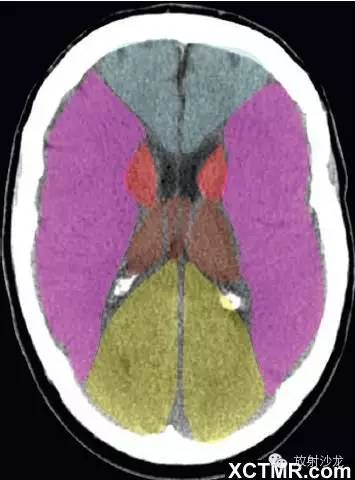

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery),绿色部分为脉络膜前动脉供血区(Anterior choroidal artery)

枣红色部分为大脑后动脉深穿支及后交通动脉供血区(Penetrating branches of the posterior cerebral artery and posterior communicating artery)

亮红色部分为大脑中动脉深穿支供血(Penetrating branches of the middle cerebral artery)

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery)

枣红色部分为大脑后动脉深穿支及后交通动脉供血区(Penetrating branches of the posterior cerebral artery and posterior communicating artery)

亮红色部分为大脑中动脉深穿支供血(Penetrating branches of the middle cerebral artery)

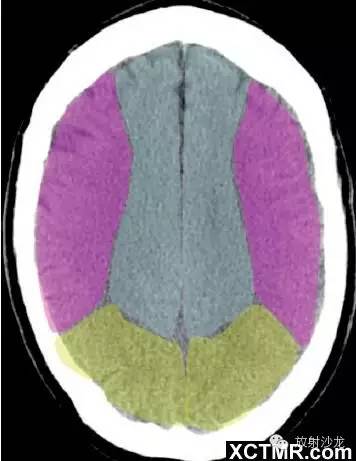

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery)

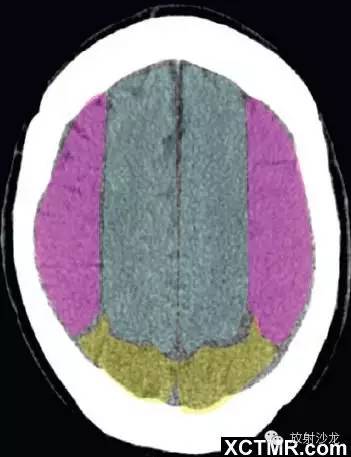

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery)

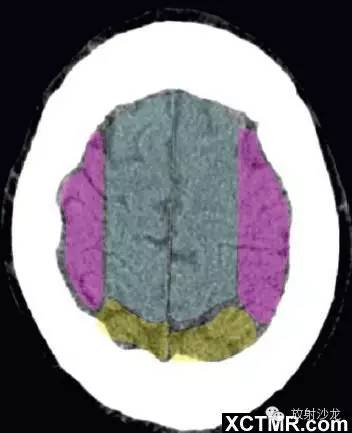

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

黄色部分为大脑后动脉终末支供血区(Terminal branches of the posterior cerebral artery)

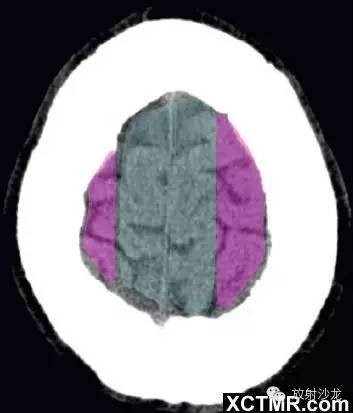

大脑动脉血管供血分区CT解剖

浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)

粉红色部分为大脑中动脉终末支供血区(Terminal branches of the middle cerebral artery)

大脑动脉血管供血分区CT解剖浅蓝色部分为大脑前动脉终末支供血区(Terminal branches of the anterior cerebral artery)
