眼眶MRI影像解剖

泪器

眼眶MRI影像解剖

Lacrimal gland 泪腺

Lacrimal canalculi 泪小管

Lacrimal sac 泪囊

Nasolacrimal duct 鼻泪管

Lacrimal caruncle 泪阜

眼眶与眼球

眼眶MRI影像解剖

Tarsus of eyelid 眼睑板

Palpebral conjunctiva 睑结膜

Bulbar conjunctiva 球结膜

Cornea 角膜

Lens 晶状体

Medial/Lateral palpebral ligament 睑内/外侧韧带

Medial/Lateral rectus muscle 内/外直肌

Levator palpebrae superioris muscle 上睑提肌

Superior/Inferior rectus muscle 上/下直肌

Superior/Inferior oblique muscle 上/下斜肌

Common tendinous ring 总腱环

Retrobulbar fat 球后脂肪

Optic nerve 视神经

Optic disc 视神经盘

Ophthalmic artery 眼动脉

Superior orbital fissure 眶上裂

Lacrimal nerve 泪腺神经

Frontal nerve 额神经

Trochlear nerve 滑车神经

Superior ophthalmic vein 眼上静脉

肌肉

眼眶MRI影像解剖

Medial/Lateral rectus muscle 内/外直肌

Levator palpebrae superioris muscle 上睑提肌

Superior/Inferior rectus muscle 上/下直肌

Superior/Inferior oblique muscle 上/下斜肌

Common tendinous ring 总腱环

Trochlea 滑车

血供

眼眶MRI影像解剖

Internal carotid artery 颈内动脉

Ophthalmic artery 眼动脉

Central retinal artery 视网膜中央动脉

Lacrimal artery 泪腺动脉

Anterior meningeal artery 脑膜前动脉

Anterior/Posterior ethmoidal artery 筛前/后动脉

Dorsal nasal artery 鼻背动脉

Supratrochlear artery 滑车上动脉

Supra-orbital/Infra-orbital artery 眶上/下动脉

Angular artery/vein 内眦动脉/静脉

Facial artery 面动脉

Transverse facial artery 面横动脉

Retromandibular vein 下颌后静脉

Maxillary vein 上颌静脉

Deep facial vein 面深静脉

Facial vein 面静脉

Pterygoid plexus 翼丛

Superior/Inferior ophthalmic vein 眼上/下静脉

Cavernous sinus 海绵窦

神经

眼眶MRI影像解剖

Oculomotor nerve 动眼神经

Abducent nerve 外展神经

Trochlear nerve 滑车神经

Trigeminal (semilunar) ganglion 三叉神经节

Mandibular nerve 下颌神经

Maxillary nerve 上颌神经

Ophthalmic nerve 眼神经

Frontal nerve 额神经

Supra-orbital nerve 眶上神经

Supratrochlear/Infratrochlear nerve 滑车上/下神经

Nasociliary nerve 鼻睫神经

Ciliary ganglion 睫状神经节

Sensory root of ciliary ganglion 睫状神经节感觉根

Sympathetic root of ciliary ganglion 睫状神经节交感根

Parasympathetic root of ciliary ganglion 睫状神经节副交感根

Short/Long ciliary nerves 睫状短/长神经

Anterior/Posterior ethmoidal nerve 筛前/后神经

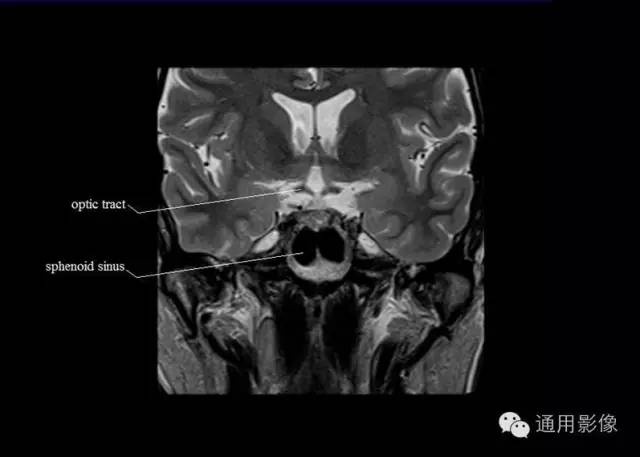

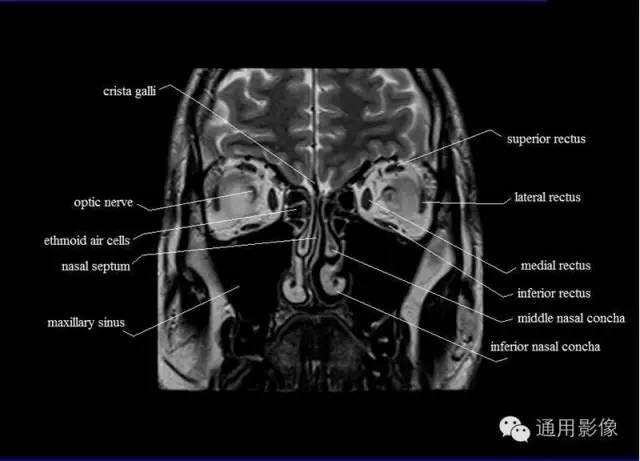

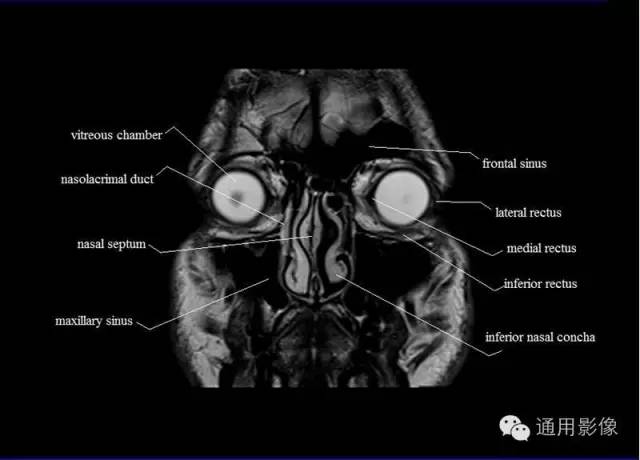

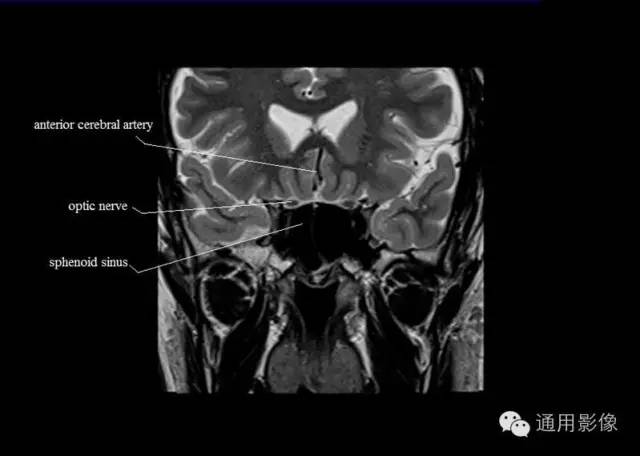

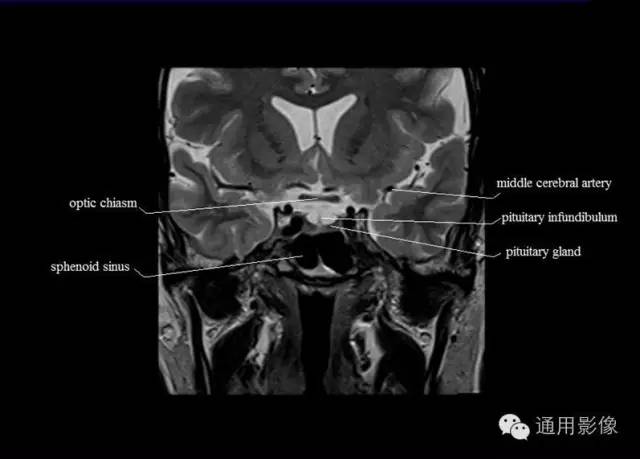

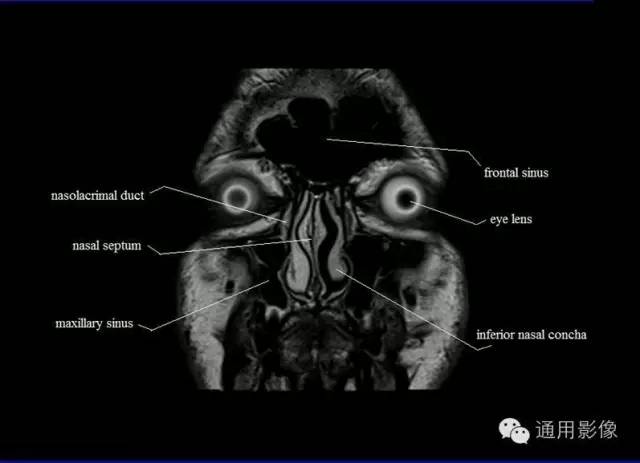

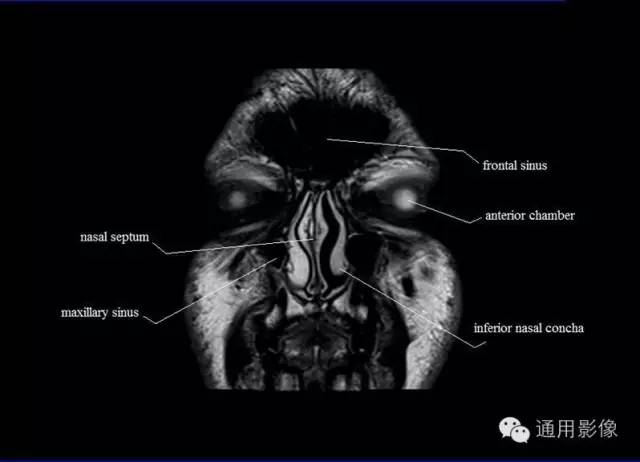

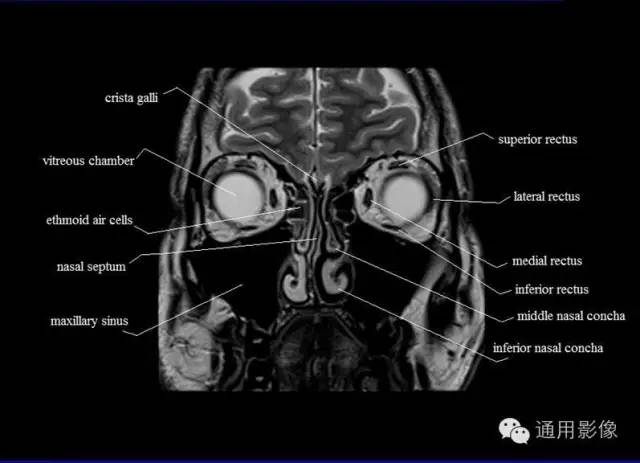

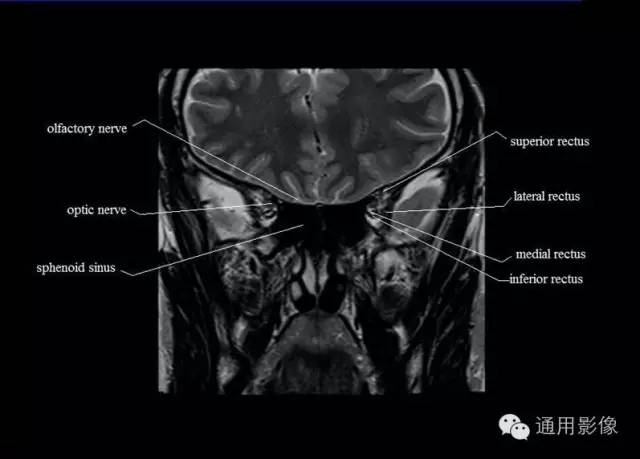

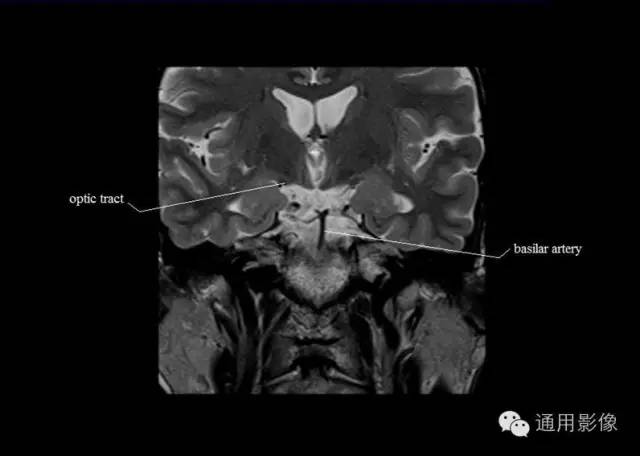

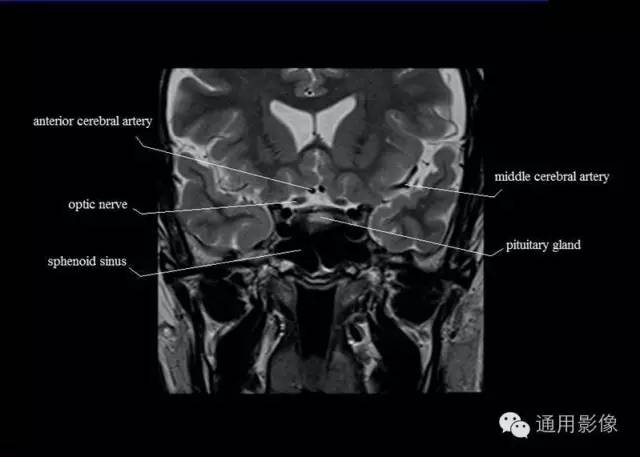

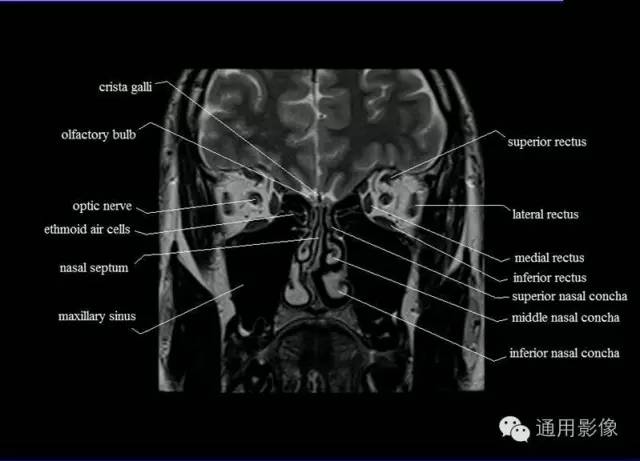

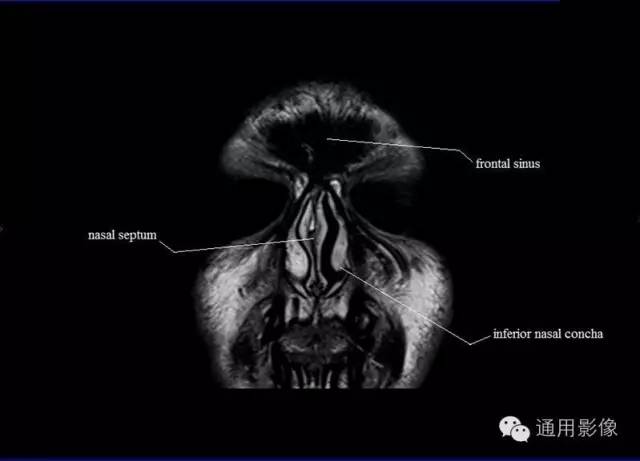

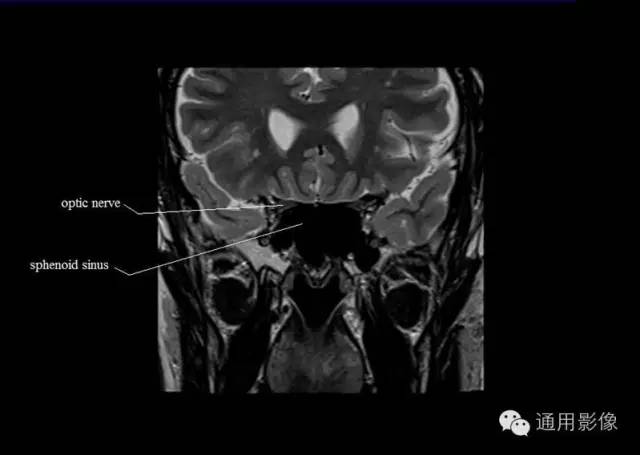

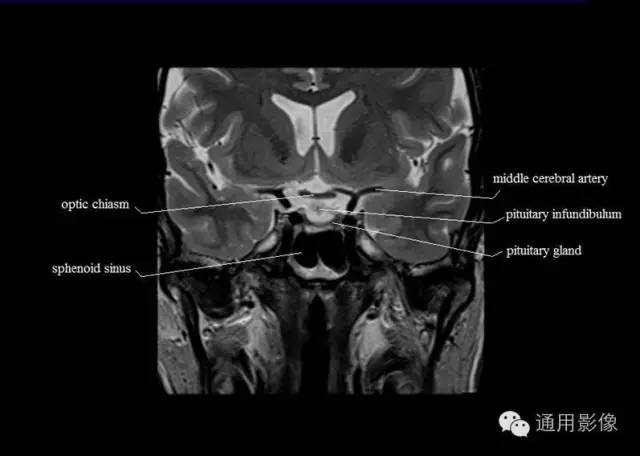

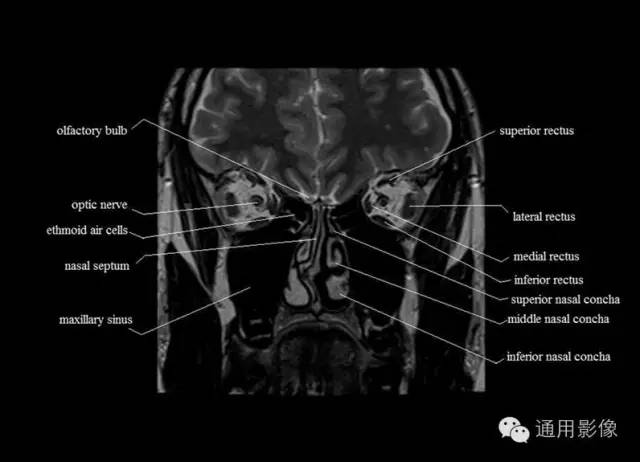

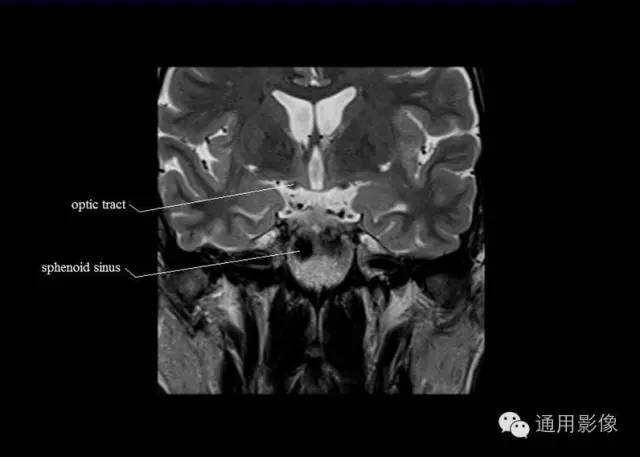

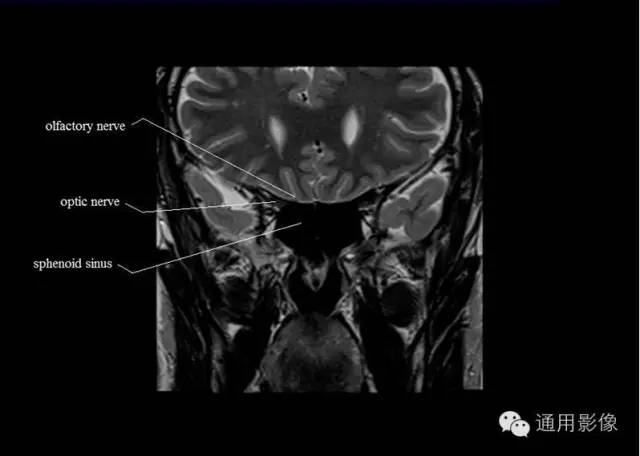

冠状面眼眶MRI
断层解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

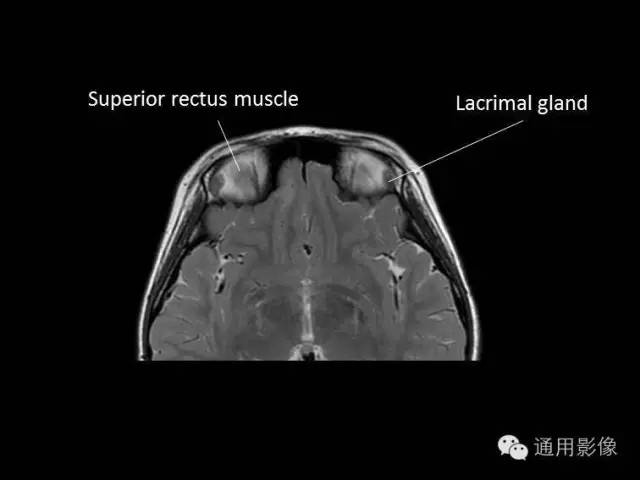

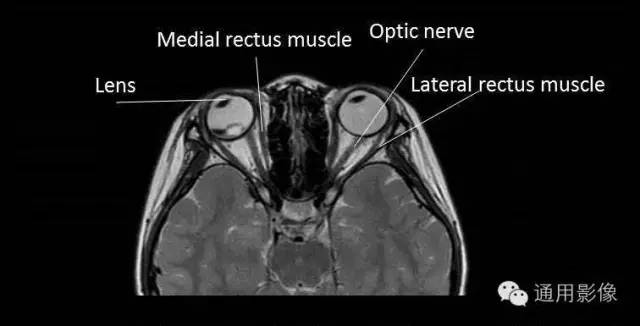

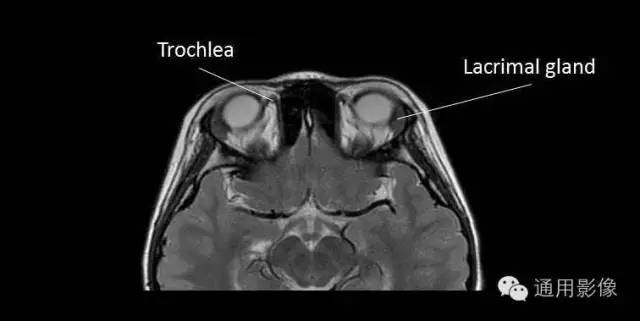

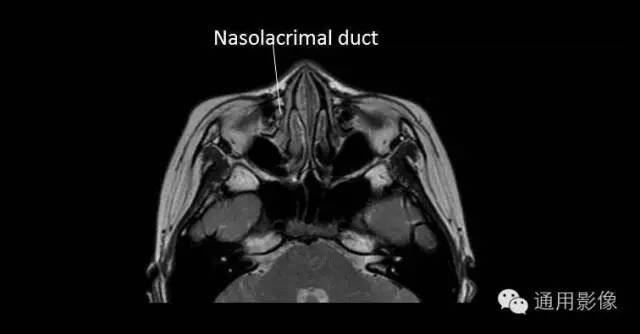

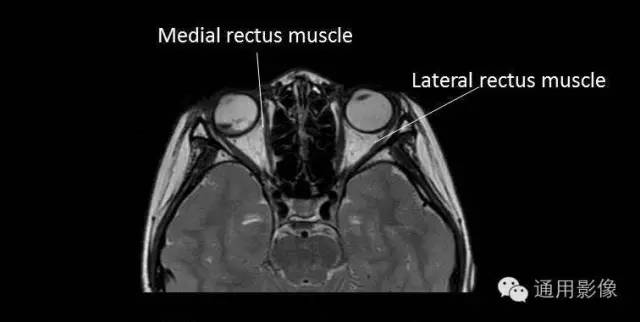

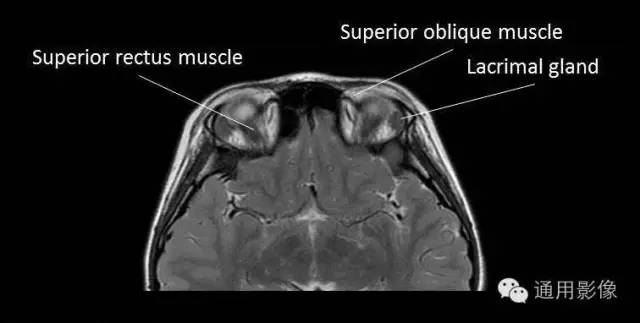

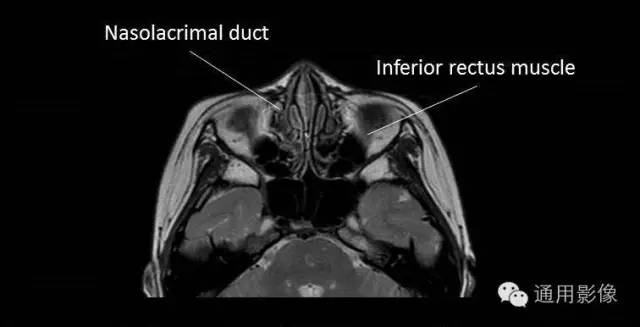

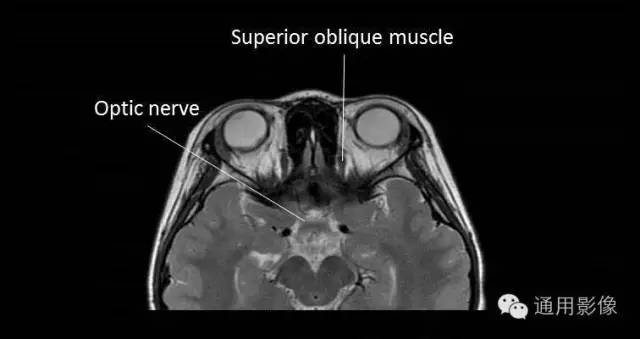

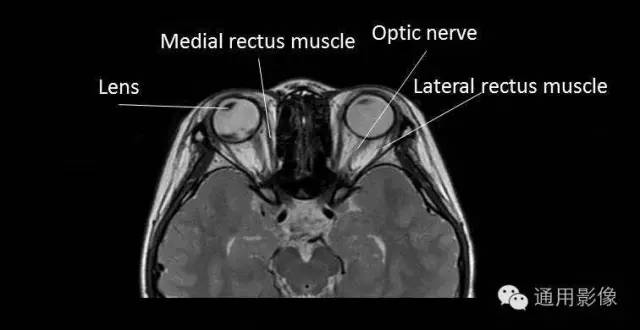

横断面眼眶MRI
断层解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖

眼眶MRI影像解剖
